20 Sedans Vertical Rotary Parking System 6 Levels Auto Stacker Car Lift

Name: 20 Sedans Vertical Rotary Parking System 6 Levels Auto Stacker Car Lift
Brand: ChangYue
Price: 1 USD

Brand Name : ChangYue

Model Number : PCX

Certification : CE

Place of Origin : Shanghai, China

MOQ : 1 unit

Price : to be negotiated

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 50 unit per month

Delivery Time : 30-60 days

Packaging Details : standard export packing

Type : Parking system

Drive : Motor+chain

Warranty : 5 Years

Color : Customized

Levels of system : 5/6/7/8/9

Parking Spaces : 8/10/12/14

Contact Now

PCX- Multi Floor Vertical Rotary Parking System
What is rotary parking system?

Rotary parking system is a kind of circular parking equipment similar to the carousel, access vehicles through all the rotation of the platform, there are generally 8 parking spaces,10 parking spaces,12 parking spaces and other types.

Vertical Rotary Model parking system which is a mechanical vehicle parking equipment that adopt parking system doing vertical cycle movement equipment, which working principle ia the motor drive the transmission mechanism through gear.In the traction chain, install a parking car frame each certain distance, when the motor starta, the car parking frame doing cycle movement along with the chain,which achieve car parking purpose.

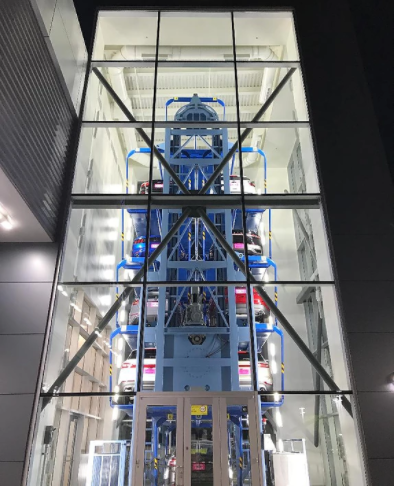

20 Sedans Vertical Rotary Parking System 6 Levels Auto Stacker Car Lift

Product Details

Rotary parking system is one of the most space-saving systems that allows you to park up to 16 SUVs or
20 sedans in only 2 conventional parking spaces. The system is independent, no parking attendant is required.
By inputting a space code or swiping a pre-assigned card, the system can recognize your vehicle automatically
and find the faster path to deliver your vehicle down to ground either clockwise or counterclockwise.

Product advantages

Don't need a large area, save space and only need to take up the area of 2 parking spaces;
Suitable for all types of vehicles;
Easy to operate, no vibration noise;
Fast operation speed, short access time;
Standardized mechanism design, smooth opetation, safe the reliable;
Equipped with safety protection device and emergency stop device, safer to access the vehicle;
Equipped with photoelectric detection, program control, automatic access vehicles, can be unattended management;
One-time investment, long-term benefit;
Quick and simple installation(standardized products, 3-7 days to complete the installation of your parking system).

Technical parameters

Item	Parameters
Type	Vertical Rotary
Levels of system	5/6/7/8/9
Parking Spaces	8/10/12/14
Size of car (LWH)	530019001550mm 530019001950mm
Car Weight	2000kg / 2350kg
Drive motor	5.5kw
Rotating Speed	4.4/min
Parking time	60S
Drive Mode	Motor + Chain
Control	PLC type (basic)
Control Method	Touch screen / Push button or IC card
Parking way	Forward in, Back out
Electricity	3 phases 5 wires, 380V, 50HZ
Safety devices	1.Car block device (Positioning) 2.Operation warning device (Warning light) 3.Car position detection device (Over length, over width detection) 4.Malfunction warning device 5.Man or car mistake entrance detection (Photoelectric switch protection devices); 6.Emergency brake device when electricity cut off; 7.Over current flow protection device 8.Key switch against wrong operation; 9.Wrong phase, shortage phase protection, motor over loading protection device; 10.Emergency stop button;

Dimensions

20 Sedans Vertical Rotary Parking System 6 Levels Auto Stacker Car Lift

Main Features

Safety characteristics

Maintenance

To ensure proper and stable fuction of entire parking system in the long run, regular and periodic inspection & maintenance
are also of vital importance:

20 Sedans Vertical Rotary Parking System 6 Levels Auto Stacker Car Lift

Notes
