2300kg Puzzle Multilevel Car Parking System Hydraulic Drive

Brand Name : ChangYue

Model Number : PSH

Certification : CE ISO9001

Place of Origin : Shanghai, China

MOQ : 5 piece

Price : to be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Unit per month

Delivery Time : 30-60 days

Packaging Details : Standard export packing

Type : PSH

Material : Steel

Dive mode : Hydraulic

Car size (LxWxH) : 5000*1850*2050(SUV)/1550(sedan)mm

Loading Capacity : 2000kg/2300

Motor power : 11-15kW

Lifting speed : 15-26m/min

Sliding motor power : 0.2kW

Sliding speed : 7.5m/min

Operation Mode : Touch screen / Push button or IC card

Power supply : 380V/50HZ 3 Phase 5 wires

Contact Now

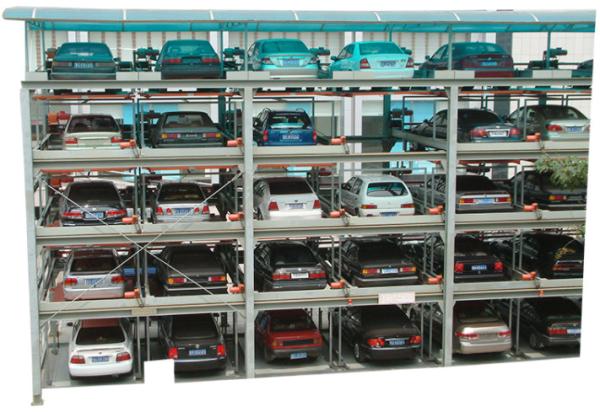

Multi levels puzzle car parking system​

Work Principle

The equipment is designed with multi-floor and multi-row. Each floor is designed with a space as an exchanging space. All spaces can be lifted automatically except the spaces in the first floor. All the spaces can slide automatically except the spaces in the top floor. When a car is needed to be parked or released, all spaces under this car space will slide to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.
Characteristics
  • Less land occupation, high space using rate.
  • Different types of packing like full packing, half packing, easy packing and naked packing are available.
  • Low building cost and low maintenance cost.
  • Running smoothly and fleetly, low noise, short accessing time.
  • Multiple safety protection like anti-fall, anti-collision, anti-overload and a series of safety protection device.
  • Adopted hydraulic speed regulation technology, work smoothly.

2300kg Puzzle Multilevel Car Parking System Hydraulic Drive

2300kg Puzzle Multilevel Car Parking System Hydraulic Drive

Main Structure

  • Steel structure
  • Car Pallet
  • Lifting system
  • Sliding system
  • Hydraulic system
  • PLC control system
  • Safe-guard system

Technical Parameters

Item Parameters
Drive Mode Hydraulic drive
Levels of system 7
Size of car
(L*W*H)		 5000*1850*1550mm
5000*1850*2050mm
Car Weight 2000kg
Operation Mode Auto IC card/ Manual button
Lifting motor power 11-15KW
Lifting speed 15-26M/MIN
Sliding motor power 0.2KW
Sliding speed 7.5M/MIN
Control Method Touch screen / Push button or IC card
Parking way Forward in, Back out
Electricity 3 phases 5 wires, 380V, 50HZ
Safety devices Over-length, over-width, over height detection; car space with car or without car detection; wrong entrance detection,
Malfunction indication Computer malfunction diagnosis, human-computer communication information display
Parts appearance
treatment		 Hot spray galvanized treatment and high-grade anti-corrosion painting
Controller PLC, with control monitoring, IC card, manual and operative panel;
Way of parking in and
out		 Forwarding in and forwarding out;

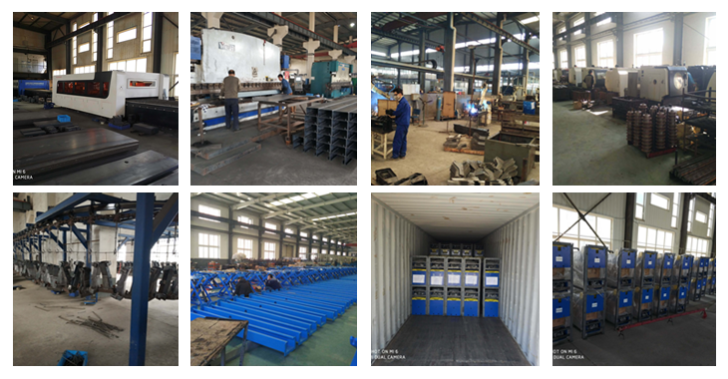

Production Process
2300kg Puzzle Multilevel Car Parking System Hydraulic Drive
2300kg Puzzle Multilevel Car Parking System Hydraulic Drive
